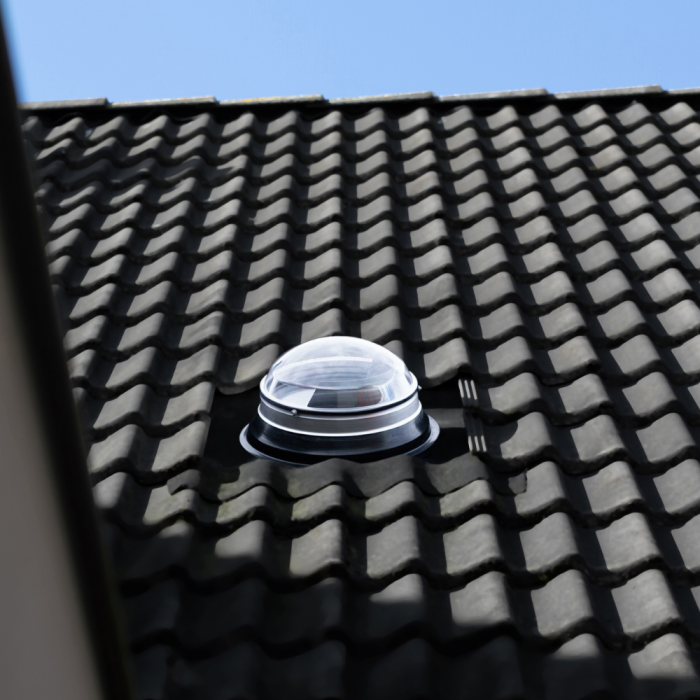

Powerdaylight Ø 35 cm pitched roof exterior (roof) components
£906.00
£755.00
In stock
SKU
T829021-35
Package Contents:
Pre-assembled:
- Polycarbonate dome
- Dome lens
- Dome reflector
- Dome ring
- 30 cm straight tube
Separate components:
- 3 screws
- Pitched roof flashing
- High-tack sealant
Key Features:
- Double daylight output compared to Ø 25 cm, 2884* lumen as opposed to 1434* lumen
- This product offers the optimal balance between thermal insulation, acoustic performance, light output, and price — making it the smartest choice for both performance and value.
- Most popular, brightens workplaces as well as houses
Performance Guidelines:
-
Max. ceiling height: 5 metres
-
Light spread (diameter at floor level): up to 4 metres
- Recommended maximum system length: 9 metres
Product specification:
See more information tab
* six-month average Netherlands
Powerdaylight Ø 35 cm pitched roof exterior (roof) components
Versatile and a true all-rounder. Has double the light output of the Powerdaylight Ø 25 cm and can therefore be placed in any room of the house or used to illuminate areas within commercial premises such as meeting rooms, corridors and showrooms.
Pitched roof flashing can be installed quickly and easily!
Product features
- Double daylight output compared to Ø 25 cm
- Available with low profile dome
- Brightens workplaces as well as houses
| CE / Declaration of Performance | Yes |
|---|---|
| BCRG Database | No |
| ETIM | EC003113 Daylight system |
| Maximum roof and/or wall thickness standard set | 43 cm |
| Recommended maximum system length | Maximum 9 metres |
| Country of Manufacture | The Netherlands |
| Product guarantee Techcomlight | 10 years |
| Solar energy transmittance | g‐value = 0.62 |
| External fire performance (EN 13501-5) | BROOF(t4) |
| Light output in lumens (six-year average Benelux) | 2884 Lumen |
| Light transmittance of the assembled system | 57 % |
| Colour rendering index | CRI = 100 |
| Heat transfer coefficient of complete system | U =1.3 W/m²K |
| Airborne sound insulation (EN ISO 717‐1) | Dn,e,w (C;Ctr) = 62(-2;-4) dB |
| Impact resistance (EN 1873) | SB 1350 |
| Upward load (EN 1873) | UL 3352 |
| Downward load (EN1873) | DL 7182 |
Write Your Own Review
Installation Instructions
(Size: 558.1 KB)
Installation instructions external (roof) components - Ubiflex pitched roof flashing
(Size: 345.5 KB)
Installation instructions Internal (ceiling) components round Classic Vusion diffuser
