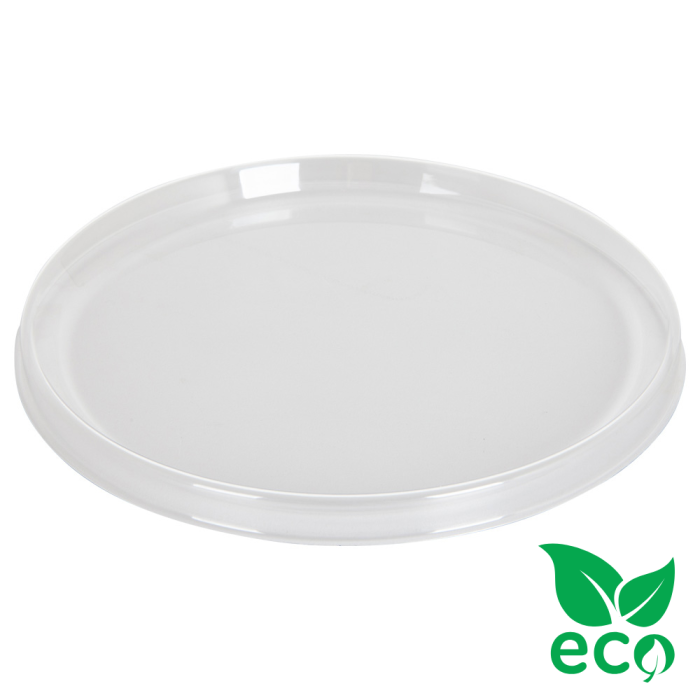

Powerdaylight Ø 53 cm Eco insulation lens

Powerdaylight Ø 53 cm insulation lens

The Powerdaylight Thermal Insulation lens (Panel) effectively reduces thermal transfer through the daylight system – a common concern with glazing and similar building elements. By acting as a thermal barrier between cold external air and the heated interior (or the reverse in warmer months), it helps maintain a stable indoor climate. This contributes to improved energy efficiency, as less energy is required to sustain a comfortable temperature. The insulation lens is included as standard in our Eco model and has been accounted for in all U-value performance testing.

The insulation lens of the Powerdaylight is always made from Vivak® UV thermoplastic copolyester. They offer high impact strength, a good fire rating and good weather resistance. These properties are demonstrated by our 10-year guarantee on mechanical strength and optical properties.

Colour:
Clear 2099 (Extremely high light transmission and high gloss).

Light Transmission:
88% (Test Method according to DIN EN ISO 13468-2)

Fire rating:
Fire rating UK: Class 1Y (standard: BS 476 Part 7)
Fire rating Germay: B1 (standard: DIN 4102)
Fire rating Europe: B s1 d0 (standard: EN 13501-1)

Permanent Service Temperature:
The permanent service temperature without load is approx. 65 °C

Glow wire flammability index:
960 (conform: IEC 60695-2-12, in °C)
