Powerdaylight Ø 53 cm Cradle flat roof exterior (roof) components
Package Contents:
Pre-assembled:
- Dome lens
- 30 cm straight tube
Separate components:
- 3 screws
- Glass daylight collector
- Flat roof flashing
- Flashing insulator (including tape)
Key Features:
-
Replacing the traditional polycarbonate dome with a flat glass plate greatly enhances the visual appeal – offering a modern, refined look that integrates seamlessly with contemporary architecture
- Recyclable and eco-friendly: Glass is fully recyclable and has a lower environmental impact in the long run.
Performance Guidelines:
-
Light spread (diameter at floor level): approx. 5 metres depending on ceiling height.
- Recommended maximum system length: 9 metres
Product specification:
See more information tab

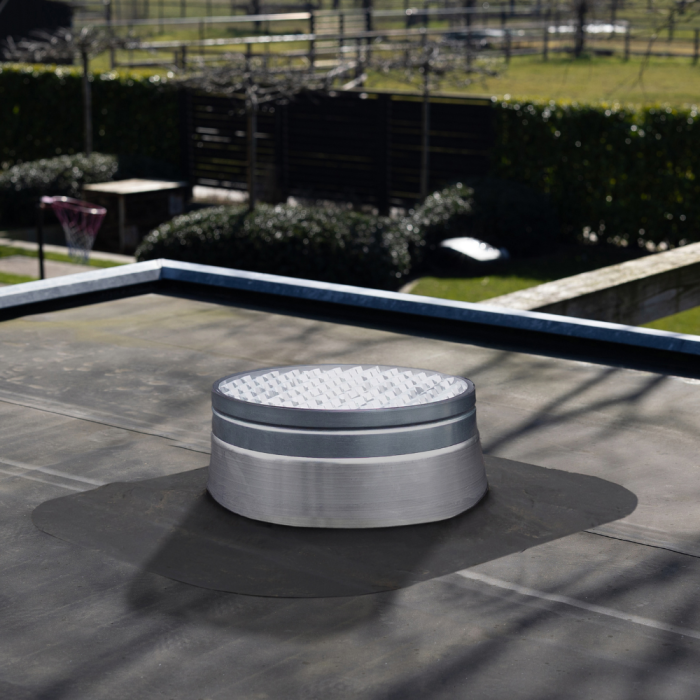

Powerdaylight Round Cradle System - flat roof terminal
The Powerdaylight Cradle is a light tube that is suitable for a flat or slightly sloping roof. The Powerdaylight daylight tube captures the daylight through a flat glass panel and transports it inside using a highly reflective tube.
The Powerdaylight daylight system is equipped with the following as standard:
- A flat glass panel made of toughened glass, which gives it impact and scratch resistance.
- A ‘Powerdaylight Cell’ reflective grid integrated within the flat glass panel which captures daylight and reflects it down into reflective tube.
- Reflective aluminum tubing which has an internal silver surface treatment with a specular reflection of up to 98%.
The Powerdaylight brand is aware of the potential of reusing materials and makes a conscious choice not to use plastic. Powerdaylight systems are manufactured from materials such as glass and aluminium which are 100% recyclable and sustainable.
| CE / Declaration of Performance | No |
|---|---|
| ETIM | EC003113 Daylight system |
| Laminated Security Glass | No |
| Maximum roof and/or wall thickness standard set | 43 cm |
| Recommended maximum system length | Maximum 9 metres |
| Product guarantee Techcomlight | 10 years |
| Country of Manufacture | Spain |
| Maximum point load | 12 KG |
| Total load capacity | 150 KG /m2 |
| Solar energy transmittance | g‐value summer = 0.62 / g‐value winter = 0.77 |
| Heat transfer coefficient of complete system | U =2.6 W/m²K |
| SCRATCH RESISTANCE | 6,5 Mohrs |
| Colour rendering index | CRI = 100 |
| Airborne sound insulation (EN ISO 717‐1) | 30 dB |
