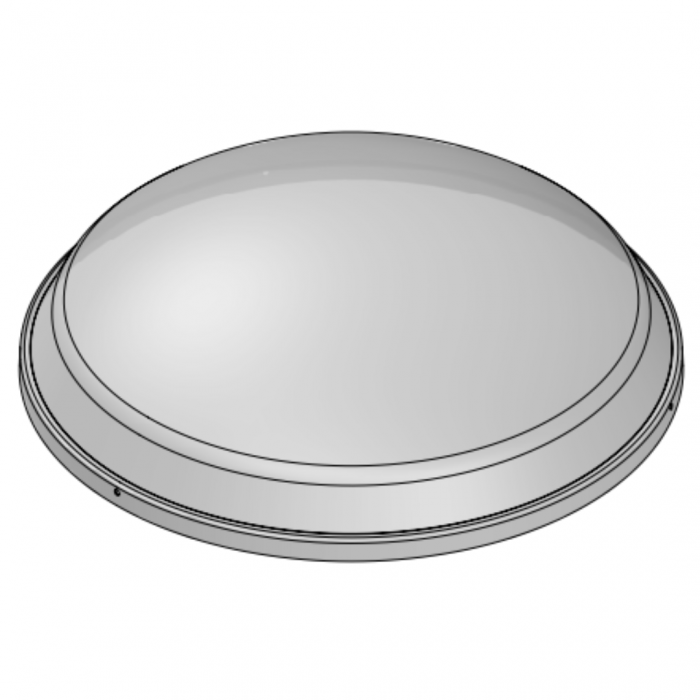

Powerdaylight Ø 35 cm polycarbonate dome

Powerdaylight Ø 35 cm polycarbonate dome

The Powerdaylight dome is crafted from high-quality Makrolon® UV polycarbonate, renowned for its excellent durability and optical clarity. This clear-transparent material features UV protection on both sides and provides superior weathering resistance, ensuring optimal performance in all climates. Backed by a 10-year guarantee for both weather resistance and mechanical integrity, the dome offers long-lasting protection and performance. Its smooth, curved shape also minimises the accumulation of dirt and debris, helping to maintain high light transmission with minimal maintenance. With outstanding impact strength and a high fire safety rating, it is designed to meet the most demanding requirements for daylight systems.

Your benefits:
• excellent weathering resistance
• extreme impact strength
• good fire rating

Colour:
Clear 2099

Size:
Overall height of the dome: 13 cm
Height above flashing (Visible dome height): 11 cm
Mounting overlap: 2 cm

Light Transmission:
87% (Test Method according to DIN EN ISO 13468)

Fire rating:
Fire rating UK: Class 1Y (standard: BS 476 Part 7)
Fire rating France:  M2 (standard: NF P 92-501&505)
Fire rating Europe: B s1 d0 (standard: EN 13501-1)
Fire rating USA: V0 (standard: UL94)

Glow wire flammability index:
960 (conform: IEC 60695-2-12, in °C)

Permanent Service Temperature:
The permanent service temperature without load is approx. 120 °C

Weathering Resistance:
Makrolon® UV show excellent weathering resistance, which guarantees their impact strength even after many years. Since their introduction in 1989, the sheets have been examined in an intensive test program, including a real-time outdoor exposure test in a southern European climate (Bandol). The sheets are provided with a 10-year warranty on unbreakability and on optical properties.
