Powerdaylight Ø 35 cm Cradle round walkable exterior components

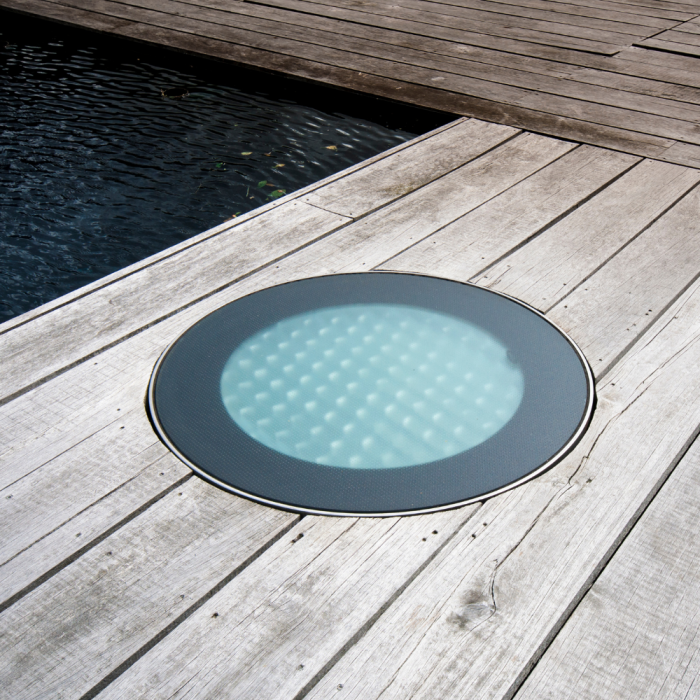

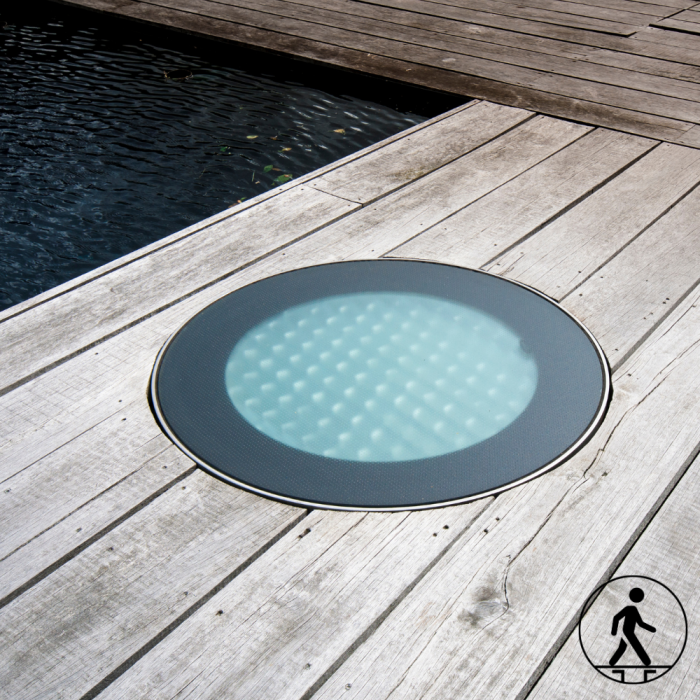

Powerdaylight Pedestrian (Walkable) Round Cradle System
The Powerdaylight Pedestrian is a daylight tube that can be walked over. The Powerdaylight daylight tube captures the daylight through a flat glass panel and transports it inside using a highly reflective tube.
The pedestrian system can be walked over with a point load of 400 kg and a total load capacity of 500 kg/m². Ideal for providing daylight to dark areas below patios, gardens, parking lots etc.
The pedestrian system is equipped with the following as standard:
- Triple-laminated glass, the top of which is toughened safety glass with double-laminated glass below;
- Anti-slip finish;
- Anti-condensation air chamber.
The Powerdaylight daylight tube is equipped with the following as standard:
- A ‘Powerdaylight Cell’ reflective grid integrated within the flat glass panel which captures daylight and reflects it down into reflective tube.
- Reflective aluminum tubing which has an internal silver surface treatment with a specular reflection of up to 98%.
The Powerdaylight brand is aware of the potential of reusing materials and makes a conscious choice not to use plastic. Powerdaylight systems are manufactured from materials such as glass and aluminium which are 100% recyclable and sustainable.
| CE / Declaration of Performance | No |
|---|---|
| ETIM | EC003113 Daylight system |
| Laminated Security Glass | Yes |
| Maximum roof and/or wall thickness standard set | 43 cm |
| Recommended maximum system length | Maximum 9 metres |
| Product guarantee Techcomlight | 10 years |
| Country of Manufacture | Spain |
| Maximum point load | 400 KG |
| Total load capacity | 500 KG /m2 |
| Solar energy transmittance | g‐value summer = 0.42 / g‐value winter = 0.52 |
| Heat transfer coefficient of complete system | U =2.6 W/m²K |
| SCRATCH RESISTANCE | 6,5 Mohrs |
| Colour rendering index | CRI = 100 |
| Airborne sound insulation (EN ISO 717‐1) | 49 dB |
| Slip Resistance (UNE ENV 12633:2003) (Rd) | C3 (56) |
