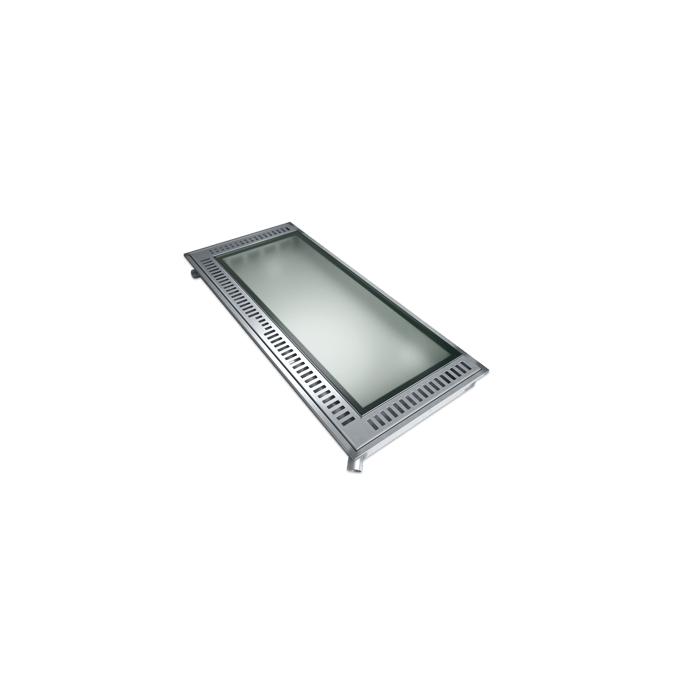

Lucernario S 65 (65 x 150 cm) Ventilation – light shaft finish

Lucernario S 65 (65 x 150 cm) Ventilation – light shaft finish

Reinventing the traditional lightwells

Lucernario can be installed during the construction of terraces and sidewalks with lightwells. Also ideal for applications in the garden, on precast lightwells made of concrete or plastic. Stainless-steel structure, with high structural bearing capacity, easily adapted to a variety of applications. The front drainpipes allow rainwater to be channelled into dedicated drainage pipes on the ground floor for sheltered, clean and dry basement windows.

How it works
Lucernario collects rainwater from its drainage channel whilst ventilating the underground environment through the air intakes.

The air intakes, which are always open, are protected by anti-insect and dirt meshes. Simply lift the grille to clean the drainage channel.

Why choose a Lucernario

• Natural Light: The laminated glass has a slight satin finish which provides better light diffusion in the basement. The non-slip pattern helps protect the surface of the glass from scratches.
• Unmatched cleaning: Dirt is collected inside an inspection channel for easy cleaning from the outside. Micro-perforated mesh prevents the passage of insects and debris.
• Security: The technology applied to the product makes it safer than a traditional grille, reducing the risk of break-in through the basement. Security product certified RC2.

Materials
Lucernario is made of semi-gloss steel for a modern but not too flashy appearance. The shatterproof glass plays a major role in terms of security, it provides natural light and allows safe transit thanks to the non-slip pattern R11.

Size
Product dimensions: cm. 65 x 150 x H 13
Luminous compartment: cm. 44.6 x 119.6
Insole hole: "from-to" cm. 45 - 57 x 120 - 134
